Embed Nevermined Widgets

Drop Nevermined checkout, card enrollment, and delegation flows into your own site as iframes signed by your organization.

If you run a Nevermined organization, you can embed Nevermined-hosted UI flows directly into your site instead of redirecting customers to nevermined.app. Your end-users stay on your domain; the iframe handles auth, payments, and card delegations against the Nevermined backend.

This guide is for organization admins. If you haven’t upgraded to an organization yet, see Platform Partners first.

What you can embed

Checkout

Sell an agent’s plans — or a standalone plan with no agent — from your own pricing page.

Card enrollment

Let users add a payment method without leaving your site. Returns the resulting paymentMethodId.

Card delegation

List enrolled cards, create delegations, and revoke either — without redirecting to nevermined.app.

How it works

Your server  →  createWidgetSession({ email, orgId, rawSecret, apiBaseUrl })
             →  WidgetSession (2-hour JWT + bearer credential)

Browser      →  NeverminedWidgets.initialize({ session, environment })
             →  mounts iframe(s) directly — no token-exchange call

Iframe       →  postMessage events: nvm:ready, nvm:success, nvm:error, nvm:close

The widget secret never leaves your server. The integrator backend POSTs { email, orgId, rawSecret } to the Nevermined API server-to-server; the API hashes the candidate and constant-time compares against the SHA-256 of the keys you generated in the dashboard, then returns a 2-hour WidgetSession your backend forwards verbatim to the browser SDK.

The rawSecret is the equivalent of a password for your organization’s widget surface. Anyone who has it can mint sessions as any end-user of your org. Keep it in environment variables on a server you control — never commit it, never bundle it into client-side JavaScript. The API only ever stores its SHA-256; if you lose the raw value, revoke the key in the dashboard and generate a new one.

Setup

1. Generate a widget key

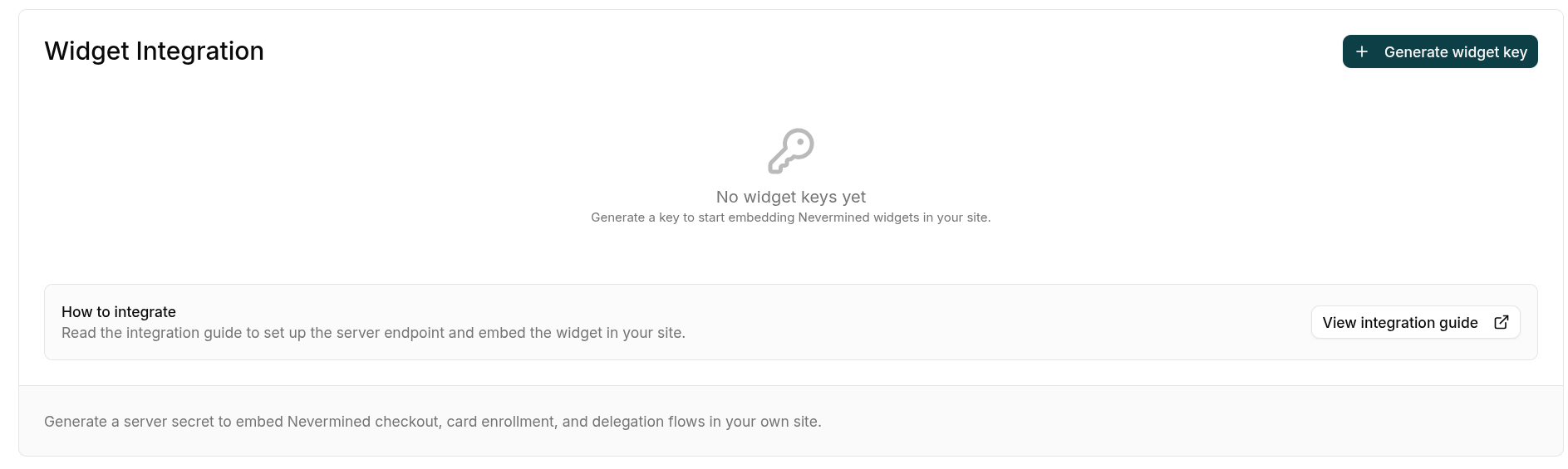

   Open Settings > Organization in the Nevermined App and scroll to the Widget Integration section.

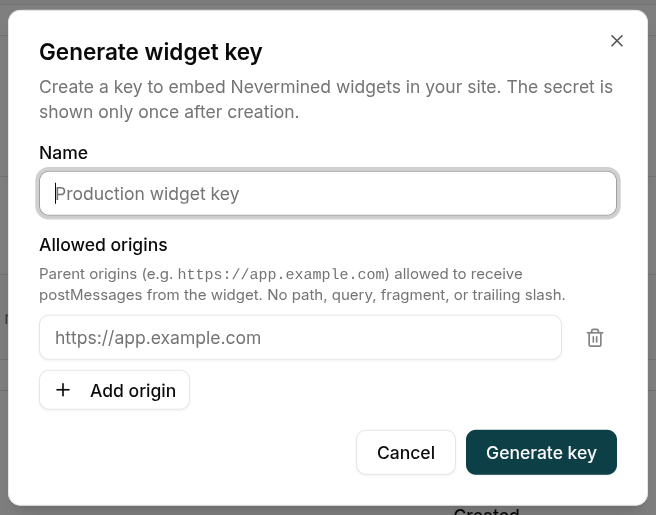

   Click Generate widget key and fill in the dialog:

   • Name — a descriptive label, e.g. Production website.

   • Allowed origins — every domain where the widget will be mounted, e.g. https://yourcompany.com and https://staging.yourcompany.com. At least one origin is required. Use Add origin to add more rows. No path, query, fragment, or trailing slash.



   The Nevermined backend rejects widget sessions whose parentOrigin doesn’t match this allowlist — it’s your second line of defense if the secret ever leaks. You can edit the list later from the key’s actions menu without rotating the secret.

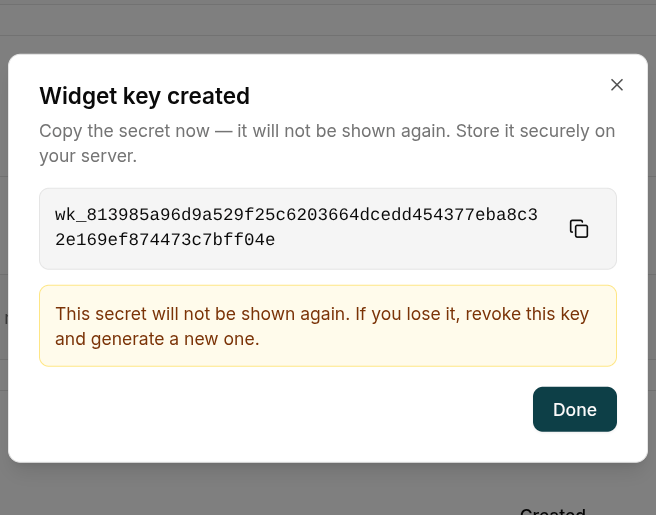

   Click Generate key. The raw secret is shown once. Copy it and store it as an environment variable on your server (for example, NVM_WIDGET_SECRET). You won’t see it again.



   If you lose the secret, revoke the key from the dashboard and generate a new one. There’s no recovery path — that’s by design.

2. Mint the widget session on your server

   Install the server SDK on your backend and expose a small endpoint that mints a WidgetSession for the currently logged-in end-user.

   npm install @nevermined-io/ui-widgets-server


   The call is the same regardless of framework:

   import { createWidgetSession } from '@nevermined-io/ui-widgets-server'

   const session = await createWidgetSession({
     email: '<the end-user email from your system>',
     orgId: '<your org id from the dashboard>',
     rawSecret: process.env.NVM_WIDGET_SECRET!,
     apiBaseUrl: 'https://api.sandbox.nevermined.app', // or live URL
   })


   Pick the framework that matches your stack:

   Vite middleware

   // vite.config.ts
   import { defineConfig } from 'vite'

   export default defineConfig({
     plugins: [
       {
         name: 'nvm-widget-session',
         configureServer(server) {
           // POST-only: the response carries a bearer credential, so
           // the endpoint must not be cacheable / prefetch-friendly.
           server.middlewares.use('/api/widget-session', async (req, res) => {
             if (req.method !== 'POST') {
               res.statusCode = 405
               res.setHeader('allow', 'POST')
               res.end()
               return
             }
             const { createWidgetSession } = await import('@nevermined-io/ui-widgets-server')
             const session = await createWidgetSession({
               email: req.headers['x-user-email'] as string, // resolve from your auth
               orgId: process.env.NVM_ORG_ID!,
               rawSecret: process.env.NVM_WIDGET_SECRET!,
               apiBaseUrl: process.env.NVM_API_BASE_URL!,
             })
             res.setHeader('content-type', 'application/json')
             res.setHeader('cache-control', 'no-store')
             res.end(JSON.stringify({ session, environment: 'sandbox' }))
           })
         },
       },
     ],
   })


   Express

   import express from 'express'
   import { createWidgetSession } from '@nevermined-io/ui-widgets-server'

   const app = express()

   // POST-only + `Cache-Control: no-store`: the response is a bearer
   // credential and must not be cached or prefetched.
   app.post('/api/widget-session', async (req, res) => {
     const session = await createWidgetSession({
       email: req.user!.email, // from your auth middleware
       orgId: process.env.NVM_ORG_ID!,
       rawSecret: process.env.NVM_WIDGET_SECRET!,
       apiBaseUrl: process.env.NVM_API_BASE_URL!,
     })
     res.setHeader('cache-control', 'no-store')
     res.json({ session, environment: 'sandbox' })
   })


   Next.js Route Handler

   // app/api/widget-session/route.ts — POST-only handler.
   import { NextResponse } from 'next/server'
   import { createWidgetSession } from '@nevermined-io/ui-widgets-server'
   import { auth } from '@/lib/auth'

   export async function POST() {
     const authSession = await auth()
     if (!authSession?.user?.email) {
       return NextResponse.json({ error: 'Unauthorized' }, { status: 401 })
     }
     const session = await createWidgetSession({
       email: authSession.user.email,
       orgId: process.env.NVM_ORG_ID!,
       rawSecret: process.env.NVM_WIDGET_SECRET!,
       apiBaseUrl: process.env.NVM_API_BASE_URL!,
     })
     // Stop caches / prefetchers from snapshotting the bearer credential.
     return NextResponse.json(
       { session, environment: 'sandbox' },
       { headers: { 'cache-control': 'no-store' } },
     )
   }


   email identifies the end-user of your site, not the org admin. Resolve it from your auth session — Nevermined uses it as the canonical identity for the widget user (the same email logging in directly at nevermined.app resolves to the same Privy user, wallet and profile).

3. Mount the widget in the browser

   Install the browser SDK on your frontend.

   npm install @nevermined-io/ui-widgets


   Fetch the session from your endpoint with a POST (the server side mints a bearer credential — GET would risk caching/prefetching it) and pass it straight to the SDK. The same nvm instance can mount any of the available widgets.

   import { NeverminedWidgets } from '@nevermined-io/ui-widgets'

   const { session, environment } = await fetch('/api/widget-session', {
     method: 'POST',
     credentials: 'same-origin', // forward your app's auth cookies
   }).then((r) => r.json())
   const nvm = await NeverminedWidgets.initialize({ session, environment })


   Then mount whichever widget you need into a container element on your page:

   Each onSuccess receives a single event object: event.result holds the flow’s result fields and event.handle.close() dismisses the iframe. The widget stays mounted on success (showing its success state) until you call handle.close() — there is no auto-dismiss.

   Checkout (agent)

   Sell a specific agent’s plans. Pass the agent did; planId is optional — omit it to show the plan carousel.

   nvm.checkout.start({
     did: 'did:nv:<your-agent-did>',
     planId: 'plan-<optional>', // omit to show the plan carousel
     container: document.getElementById('checkout-widget')!,
     onReady: () => console.log('Widget rendered'),
     onSuccess: ({ result, handle }) => {
       // result: { did: string; planId?: string; txHash?: string }
       console.log('Purchase complete', result)
       handle.close() // dismiss when your post-purchase UI is ready
     },
     onError: (err) => console.error('Checkout failed', err),
     onClose: () => console.log('User closed the widget'),
   })


   Checkout (plan only)

   Sell a plan that isn’t tied to a specific agent — mirrors the public /checkout/plan/:planId page. No did required.

   nvm.checkout.startPlan({
     planId: 'plan-<your-plan-id>',
     container: document.getElementById('checkout-widget')!,
     onSuccess: ({ result, handle }) => {
       // result: { planId: string; txHash?: string }
       console.log('Purchase complete', result)
       handle.close()
     },
     onError: (err) => console.error('Checkout failed', err),
   })


   Enroll a card

   nvm.delegations.enrollCard({
     container: document.getElementById('enroll-widget')!,
     provider: 'stripe', // 'stripe' | 'braintree' | 'visa' — defaults to 'stripe'
     onSuccess: ({ result, handle }) => {
       console.log('Card enrolled', result.paymentMethodId)
       handle.close()
     },
     onError: (err) => console.error('Enrollment failed', err),
   })


   List & delegate

   nvm.delegations.listCards({
     container: document.getElementById('cards-widget')!,
     onCardAction: ({ action, paymentMethodId }) => {
       // action: 'delegate' (user wants to delegate this card) | 'revoked' (removed inline)
       if (action === 'delegate') {
         nvm.delegations.createDelegation({
           paymentMethodId,
           container: document.getElementById('cards-widget')!,
           onSuccess: ({ result, handle }) => {
             console.log('Delegated', result.delegationId)
             handle.close()
           },
         })
       }
     },
   })


   Every iframe-mounting method also accepts optional width / height (pixels) for inline sizing — the SDK clamps them to a supported range; omit them for the default overlay.

Available widgets

Method	Mounts iframe	Result
nvm.checkout.start({ did, planId?, container, ... })	yes	onSuccess → event.result: { did, planId?, txHash? }
nvm.checkout.startPlan({ planId, container, ... })	yes	onSuccess → event.result: { planId, txHash? }
nvm.delegations.enrollCard({ container, provider?, ... })	yes	onSuccess → event.result: { paymentMethodId }
nvm.delegations.listCards({ container, onCardAction, ... })	yes	onCardAction: { action: 'delegate' | 'revoked', paymentMethodId }
nvm.delegations.createDelegation({ paymentMethodId, container, ... })	yes	onSuccess → event.result: { delegationId, paymentMethodId }
await nvm.delegations.revokeCard(paymentMethodId)	no — direct API call	resolves on 2xx
await nvm.delegations.revokeDelegation(delegationId)	no — direct API call	resolves on 2xx

All iframe-mounting methods share the same lifecycle:

Callback	When
onBooted	iframe DOM mounted (auth not yet validated)
onReady	session validated, widget interactive
onSuccess(event)	flow succeeded — the widget stays mounted in its success state; call event.handle.close() to dismiss it
onError	terminal error — widget destroys itself
onClose	widget dismissed (the user closed it, or you called event.handle.close()) — instance destroyed

A widget instance is single-use. Once it reaches a terminal state — you call event.handle.close() after success, or it fires onError / onClose — calling its method again throws. Construct a fresh widget via the same nvm instance to mount another flow.

Redirect / CLI mode (no iframe)

For integrations that aren’t an in-page iframe — a CLI tool, or any flow where you’d rather hand the user to a full-page Nevermined screen and get them back via a callback — open the embed route as a top-level browser navigation instead of mounting it through the SDK.

You pass a sessionToken and a returnUrl on the query string. The page runs the same flow and, on success, redirects the browser to returnUrl with the result IDs (plus your state echo) appended as query parameters — the same shape as an OAuth callback.

These pages are served by the dedicated embed app (https://embed.nevermined.app in production, https://embed.nevermined.dev on staging, http://localhost:4250 in local dev) — the same origin the SDK mounts in iframe mode. Supported on the card flows and plan-only checkout; the agent checkout (/checkout/$did) is iframe-only.

Route (on the embed app)	Result params appended to returnUrl
/cards/setup	paymentMethodId, delegationId
/cards/enroll	paymentMethodId
/cards/delegate	delegationId
/checkout/plan/<planId>	planId, paymentIntent

Minting a session for redirect mode

• CLI / logged-in Nevermined user — POST {apiBaseUrl}/api/v1/widgets/session/self with the user’s Nevermined credential and the orgId (the user must be a member of the org). Self-mint sessions only accept localhost returnUrls — the CLI listens on a local port.
• Hosted site — mint with the same server-side createWidgetSession as the iframe flow; the returnUrl must belong to the widget key’s allowedOrigins.

Example

https://embed.nevermined.app/cards/setup
  ?sessionToken=<the WidgetSession token>
  &returnUrl=http://localhost:8976/callback
  &state=<opaque csrf value>

On success the browser lands on:

http://localhost:8976/callback?paymentMethodId=pm_...&delegationId=del_...&state=<your csrf value>

returnUrl must be an absolute http(s) URL and is re-validated server-side against the session’s allow-list — localhost for self-mint sessions, the widget key’s allowedOrigins otherwise. A URL that isn’t allowed refuses to mount, so result IDs are never sent to an unapproved destination.

Identity

A widget session is minted for a specific email (the end-user you passed to createWidgetSession), and that session is the sole identity inside the iframe. The embed app is Privy-free: it never reads the host page’s Nevermined (Privy) login — which is exactly why it runs on any of your domains without that domain having to be on Nevermined’s auth allow-list. There’s nothing to reconcile on the host side, so no onAuthMismatch / host-login handling is needed; the widget always acts as the session’s user.

Environments

Pick the environment that matches the Nevermined dashboard you used to mint the widget key.

Environment	API base	Webapp base	Embed app	When to use
sandbox	https://api.sandbox.nevermined.app	https://nevermined.app	https://embed.nevermined.app	Testing on Base Sepolia with sandbox credentials
live	https://api.live.nevermined.app	https://nevermined.app	https://embed.nevermined.app	Production on Base mainnet

The SDK resolves all three for you from the environment you pass to initialize — you only need the Embed app origin when building a redirect-mode URL by hand. A single embed deployment serves both networks of its tier; the SDK forwards the active one as a ?network= query param when it mounts.

Production checklist

Server-side secrets only

Keep NVM_WIDGET_SECRET in your runtime env vars. Never commit it, never ship it to the browser, never put it in NEXT_PUBLIC_* or VITE_* variables.

Allowed origins populated

Add every domain where you mount the widget. The backend rejects sessions from any other origin.

HTTPS only

Serve both your site and your widget-session endpoint over HTTPS in production. parentOrigin includes the scheme, so origins must match exactly.

Real email per session

Pass the actual end-user email from your auth — never a placeholder, never the same value for every visitor. It’s the canonical identity used across Nevermined.

Rotate on suspicion

If the secret might have leaked, revoke the key from the dashboard and generate a new one. Update your env var and redeploy. The API only ever stores its SHA-256, so the only recovery path is rotation.

Short session TTLs

Widget sessions expire after 2 hours; the SDK auto-refreshes them in-place. Don’t cache or share session objects across users.

Troubleshooting

Symptom	Cause	Fix
onError: UNAUTHORIZED, apiCode BCK.WIDGET_SESSION.0001	rawSecret doesn’t match any active key for the org — or the org has no active key at all (one code covers both cases, by design, so attackers can’t probe which)	Confirm the secret in your env matches an active key in the dashboard; generate one if the org has none; rotate if leaked
onError: UNAUTHORIZED, apiCode BCK.WIDGET_SESSION.0005	Session token expired (default 2h)	The SDK auto-refreshes; if it fails persistently, re-fetch a fresh session from your server
onError: UNAUTHORIZED, apiCode BCK.WIDGET_SESSION.0011	The widget key was revoked while the session was alive	Re-call createWidgetSession with the new key’s rawSecret
Widget mounts but never reaches onReady → onError apiCode BCK.WIDGET_SESSION.0012 (403)	The mount origin isn’t in the key’s allowedOrigins	Add your site’s origin to the key’s allowlist (mind the scheme: https:// vs http://)
onError: UNAUTHORIZED, apiCode BCK.WIDGET_SESSION.0020 (403)	The did / planId you’re checking out belongs to a different organization than the widget session	Embed only agents/plans owned by the org the session was minted for
onError: PAYMENT_NOT_CONFIRMED	Came back from a Stripe redirect, but the backend couldn’t confirm the payment intent	Don’t trust the redirect_status query flag alone; if the user was actually charged, reconcile via your Stripe dashboard / support
onError: NETWORK	Fetch failed before getting a response	Check your network, CORS, and that the environment matches the API you minted the key against
[NeverminedWidgets] initialize: invalid environment	environment is not a supported value	Use 'sandbox' or 'live'
